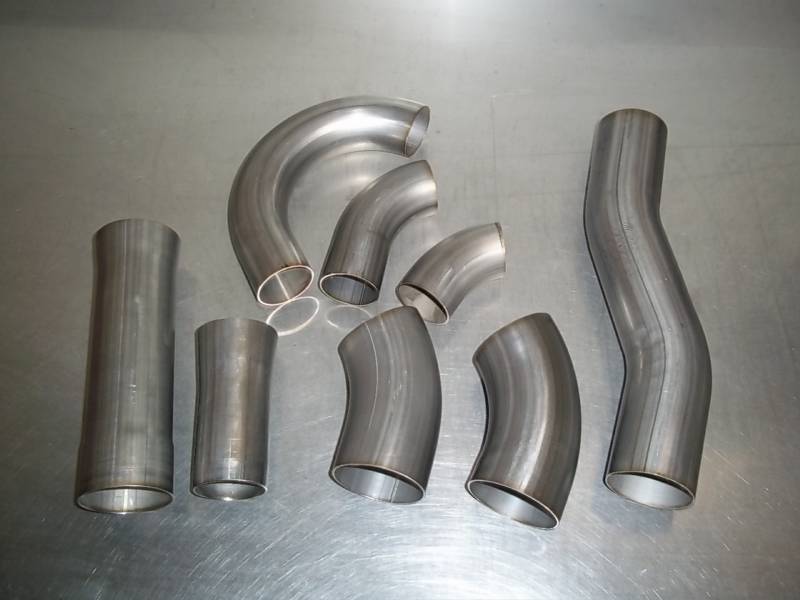

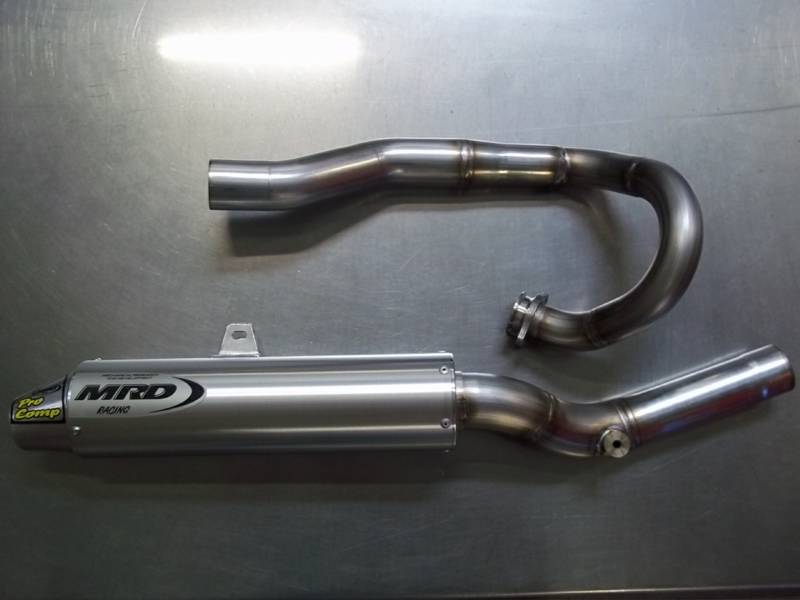

SELECT CORRECT BENDS FOR THE APLICATION
MOST MUFFLER COMPONENTS ARE MADE IN-HOUSE

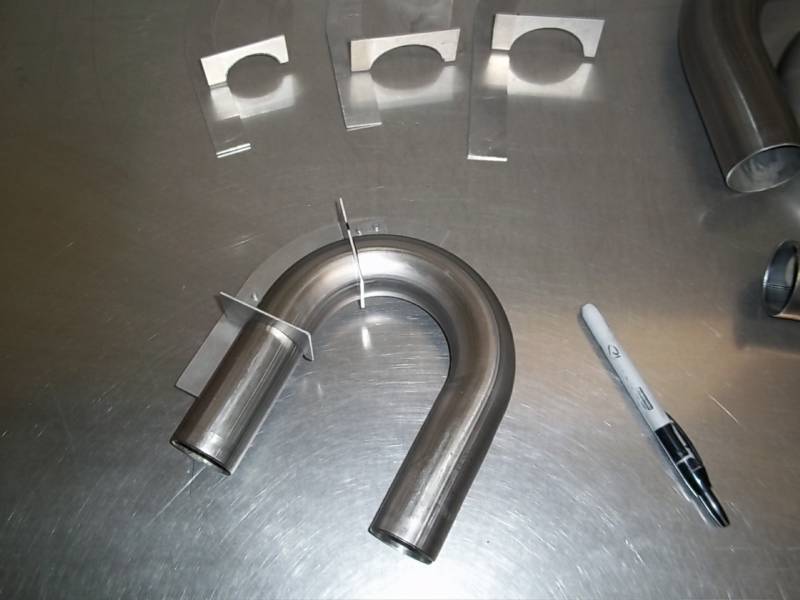

SELECT CORRECT TEMPLATES & MARK BENDS

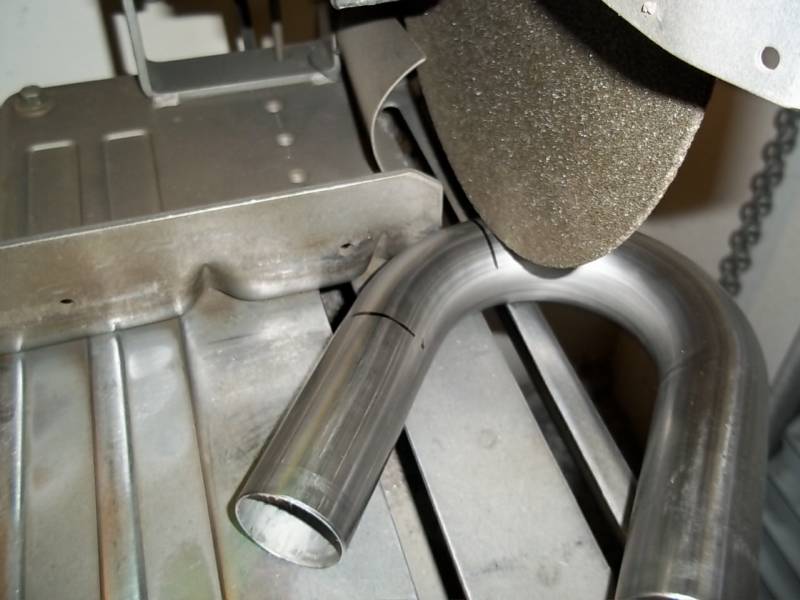

CUT BENDS TO CORRECT LENGHT & ANGLE
1.
3.
4.
5.
6.

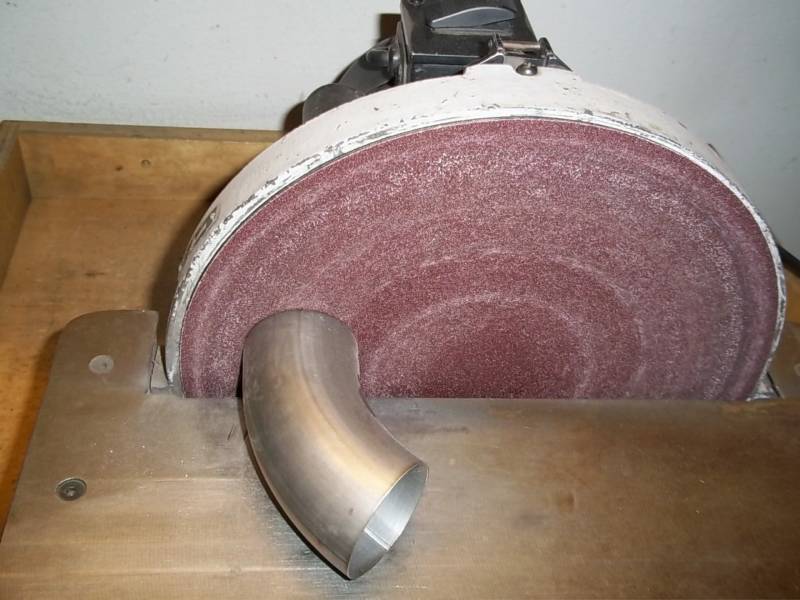

SAND TO EXACT LENGTH AND ANGLE

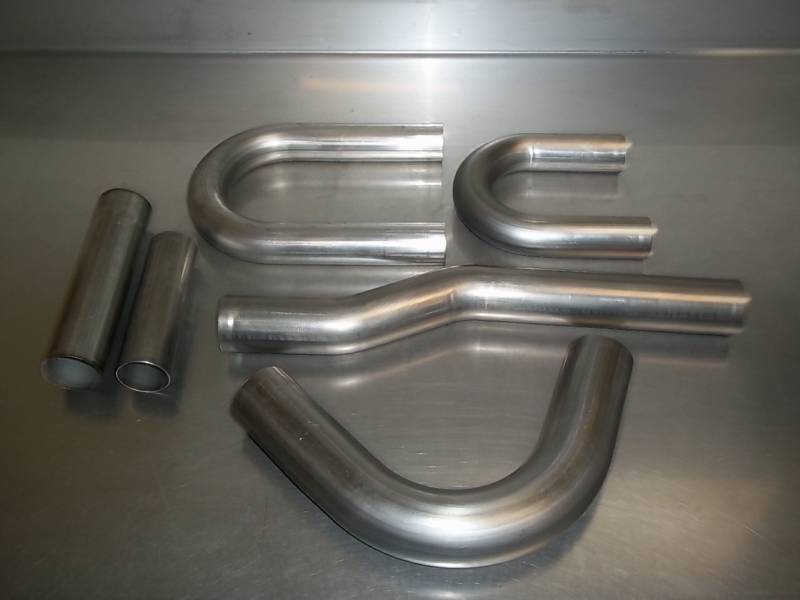

BENDS READY FOR JIG FITTING
7.

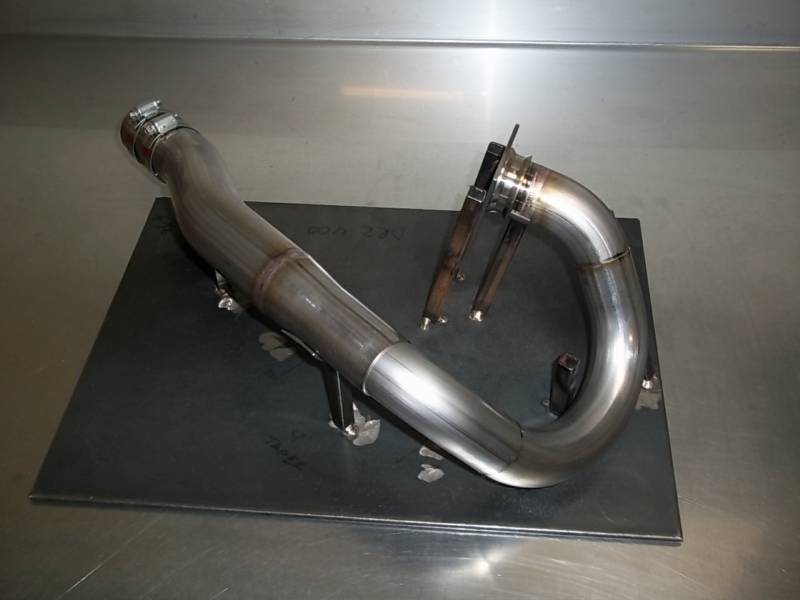

HEADER BENDS FIT TO JIG AND TACKED

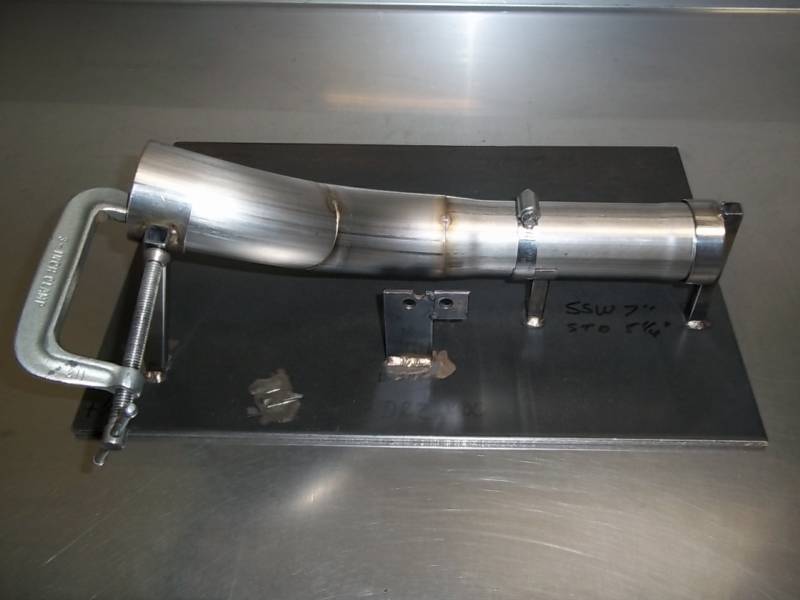

MIDPIPE BENDS FIT TO JIG AND TACKED
8.
9.

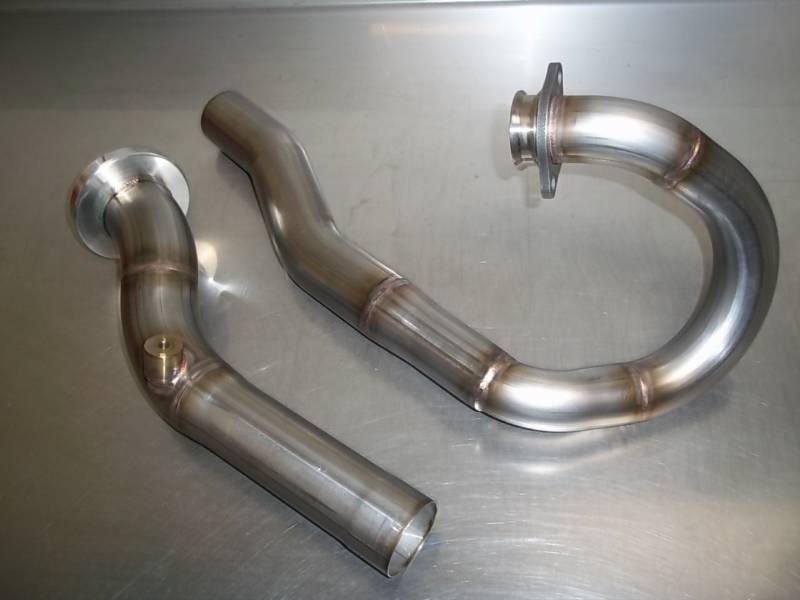

HEADER & MIDPIPE COMPLETE WITH COMPONENTS
10.

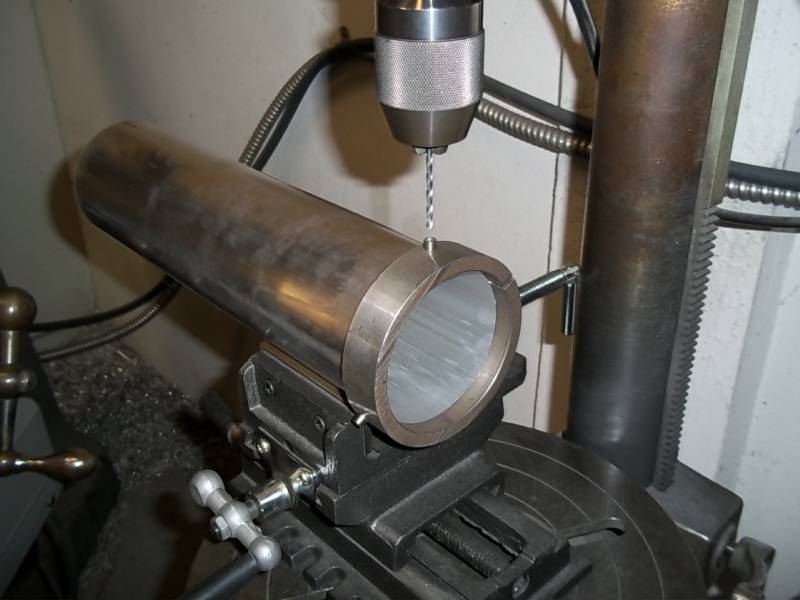

DRILL RIVIT PILOTS & ENDCAP SCREW HOLES
11.

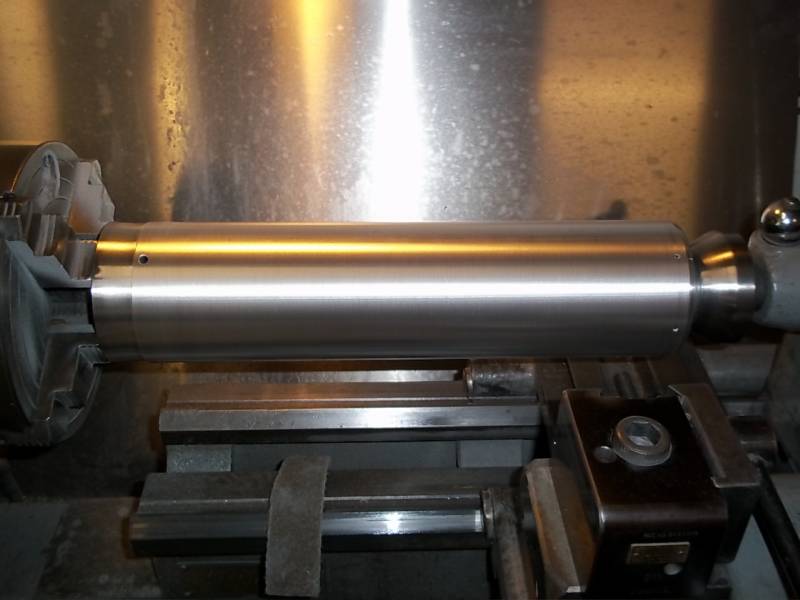

APPLY SPUN FINISH TO DRILLED MUFFLER CANISTER
12.

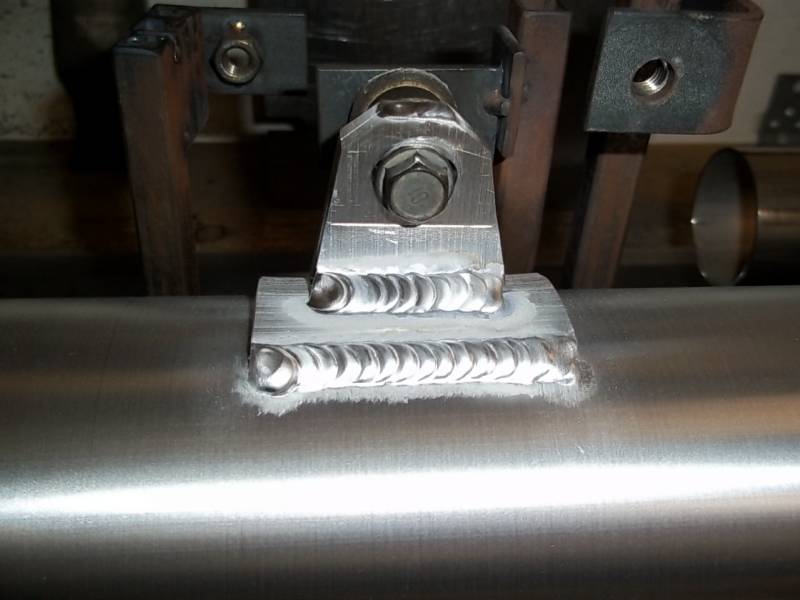

JIG & WELD MUFFLER MOUNT IN PLACE
13.

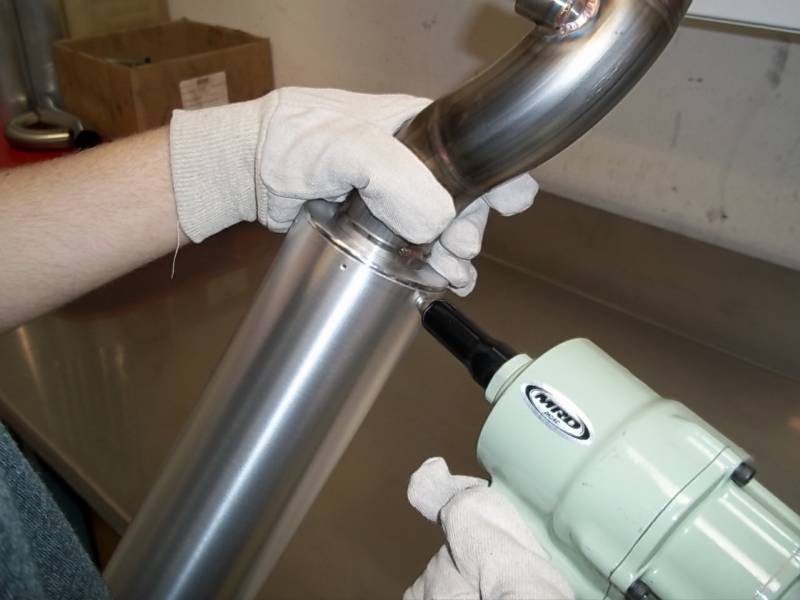

LINE UP MOUNTS & PRESS MIDPIPE INTO MUFFLER CAN

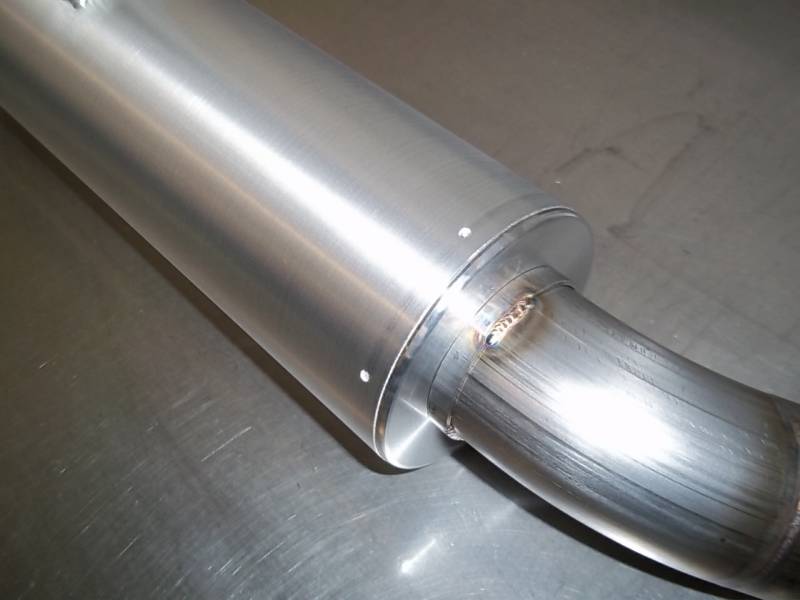

DRILL THROUGH PILOT & ENDCAP AND INSTALL RIVETS
14.
15.

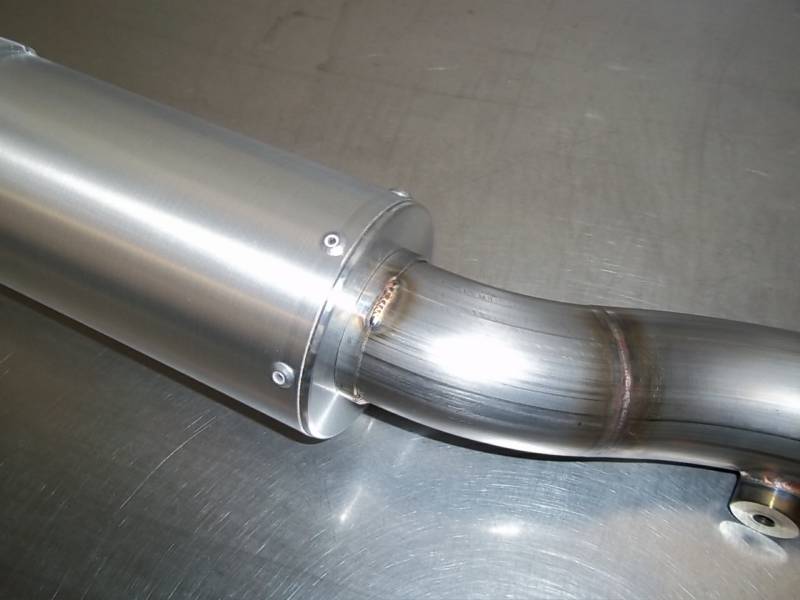

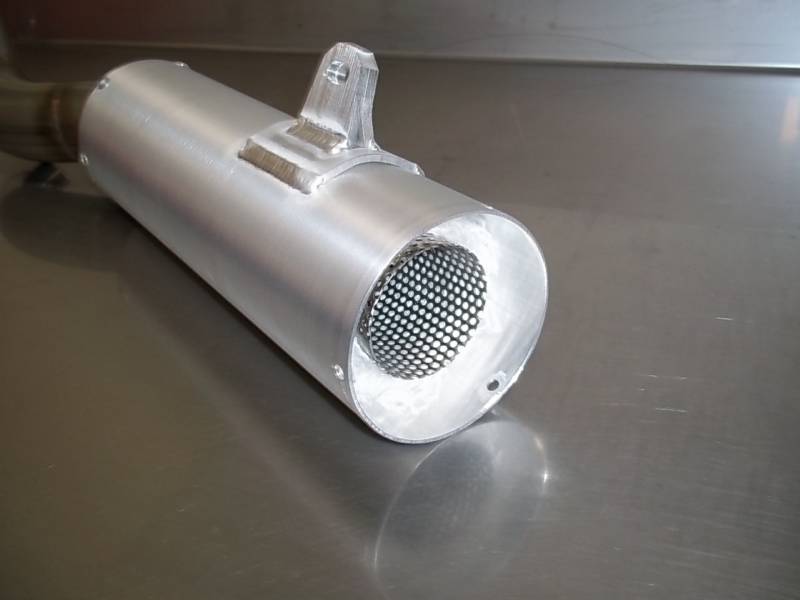

RIVETS INSTALLED - CAN READY FOR LOGO

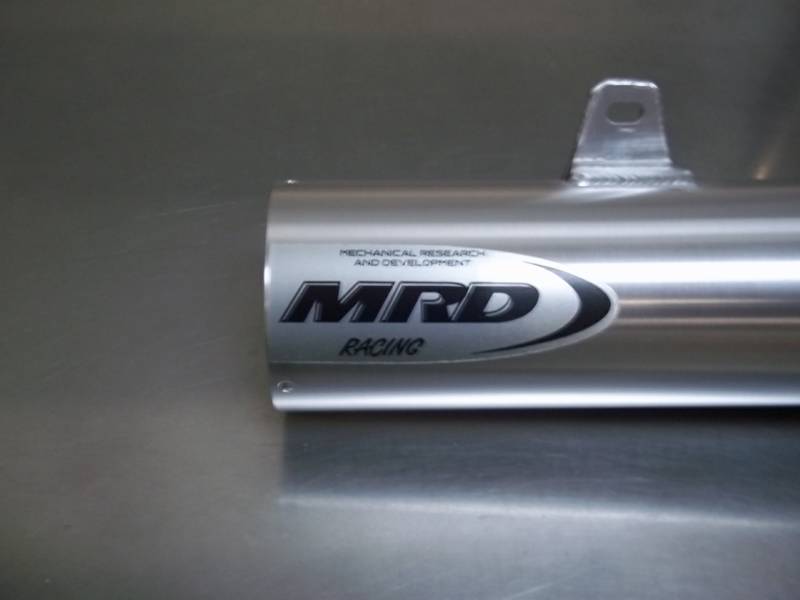

INSTALL ANODIZED ALUMINIUM MRD LOGO
17.

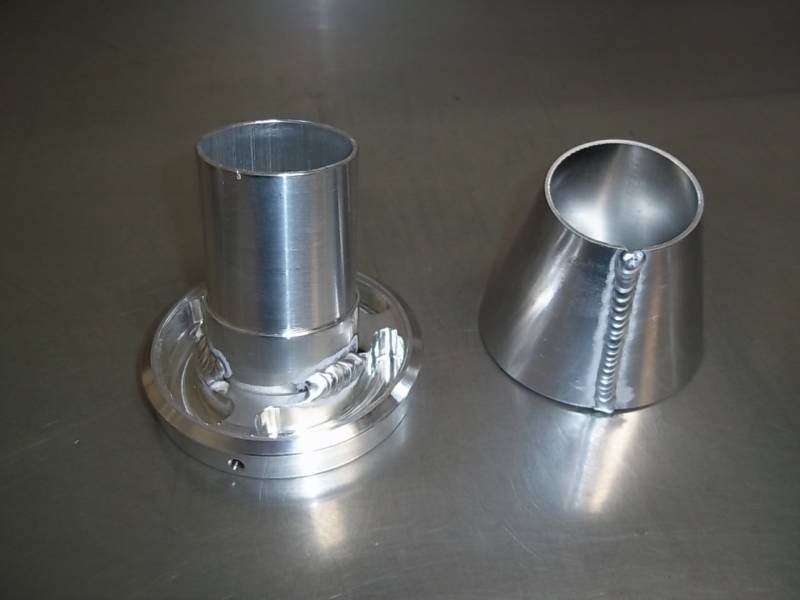

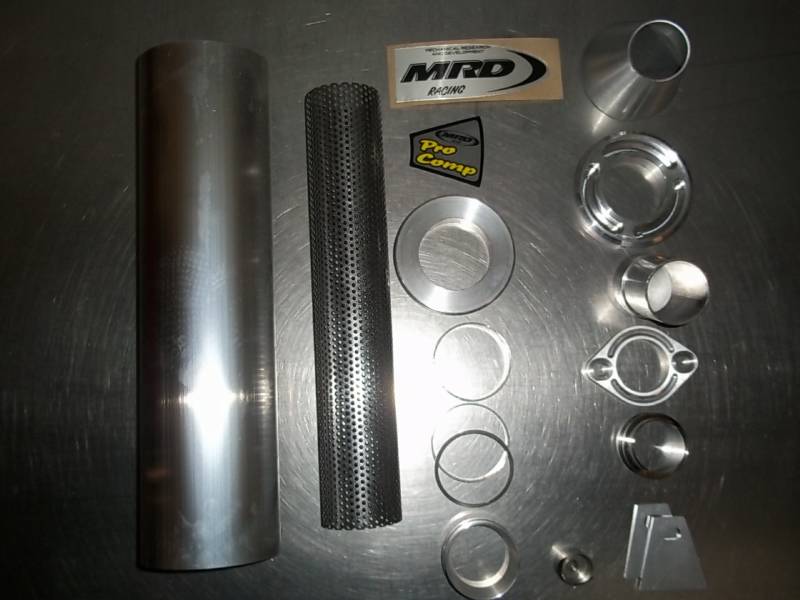

WELD ENDCAP COMPONENTS
18.

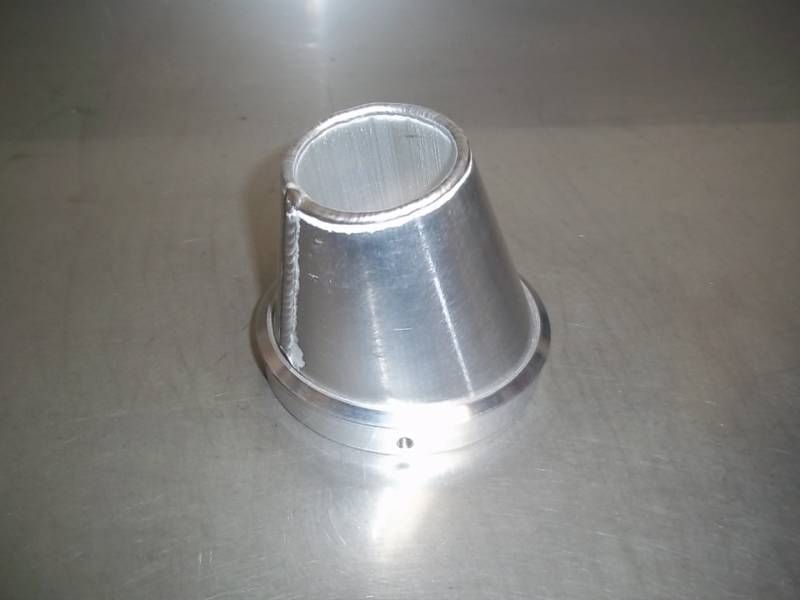

FIT & WELD CONE & ENDCAP TOGETHER
19.

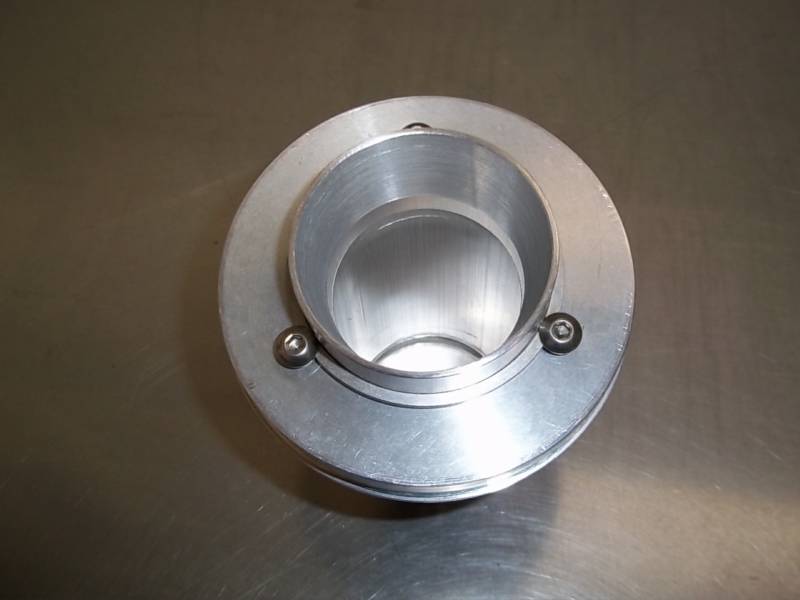

INSTALL OPEN INSERT INTO ENDCAP
20.
INSERT REMOVABLE CORE INTO MIDPIPE & PACKING
INSTALL ENDCAP & APPLY ENDCAP STICKER
